Horizontal intermittent motion cartoning machineMKY series
Features
・Improved more for the production of a wide variety of products lot and the integration a packing work in the line.
・The equipped servo driven 5 axis enable to respond to a variety of products flexibility.
・The Clean frame structure enable to find the falling objects easily inside of the machine.
・Achieve max speed 120 cartons / min.
・The Digital counter hand wheels enable the size change smoothly.
・The pre-creasing leaflet device enables the stable filling.

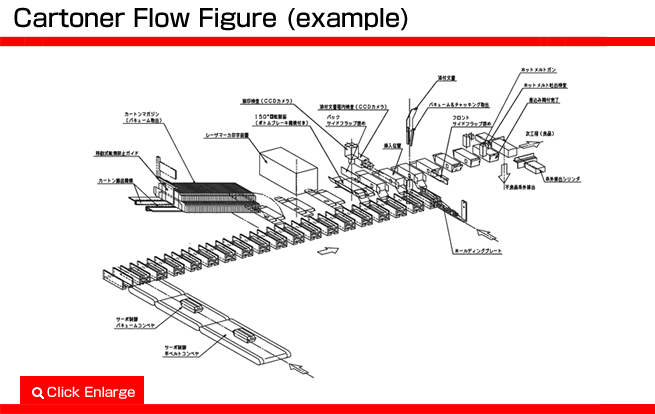

Click on the image to open it as a PDF.
Main Specifications
| Type | MKY-5GS | MKY-6GS | MKY-8GS | MKY-10GS |
|---|---|---|---|---|
| Carton size | W=25mm～100㎜ | W=35mm～130㎜ | W=40mm～170㎜ | W=50mm～210㎜ |
| Ｈ=10mm～62㎜ | Ｈ=10mm～70㎜ | Ｈ=12mm～100㎜ | Ｈ=12mm～100㎜ | |
| L=50～200㎜ | L=50～200㎜ | L=50～200㎜ | L=60～220㎜ | |
| * W+H≦130㎜ | * W+H≦170㎜ | * W+H≦210㎜ | * W+H≦250㎜ | |
| Capacity | 120 Cartons / minute | 90 Cartons / minute | 75 Cartons / minute | 65 Cartons / minute |
| Electric | 3.5kW(6.5kW) | 4kW(7kW) | ||
| Air source | 0.5MPa/cm3 ,30l/min(ANR) | |||
| Machine Weight | About 1,500kg | About 1,600kg | About 1,800kg | About 2,000kg |
| Machine size | W=1620mm | W=1620mm | W=1920mm | W=2000mm |
| H=1400mm | H=1400mm | H=1400mm | H=1500mm | |
| L=3000mm | L=3400mm | L=4400mm | L=5500mm | |
| Option | Automatic feeder, Automatic leaflet feeder Emboss print device, Hot melt device | |||
